Coolant Fluid Service

  • Product ID:
    EC-1 #1000-0070

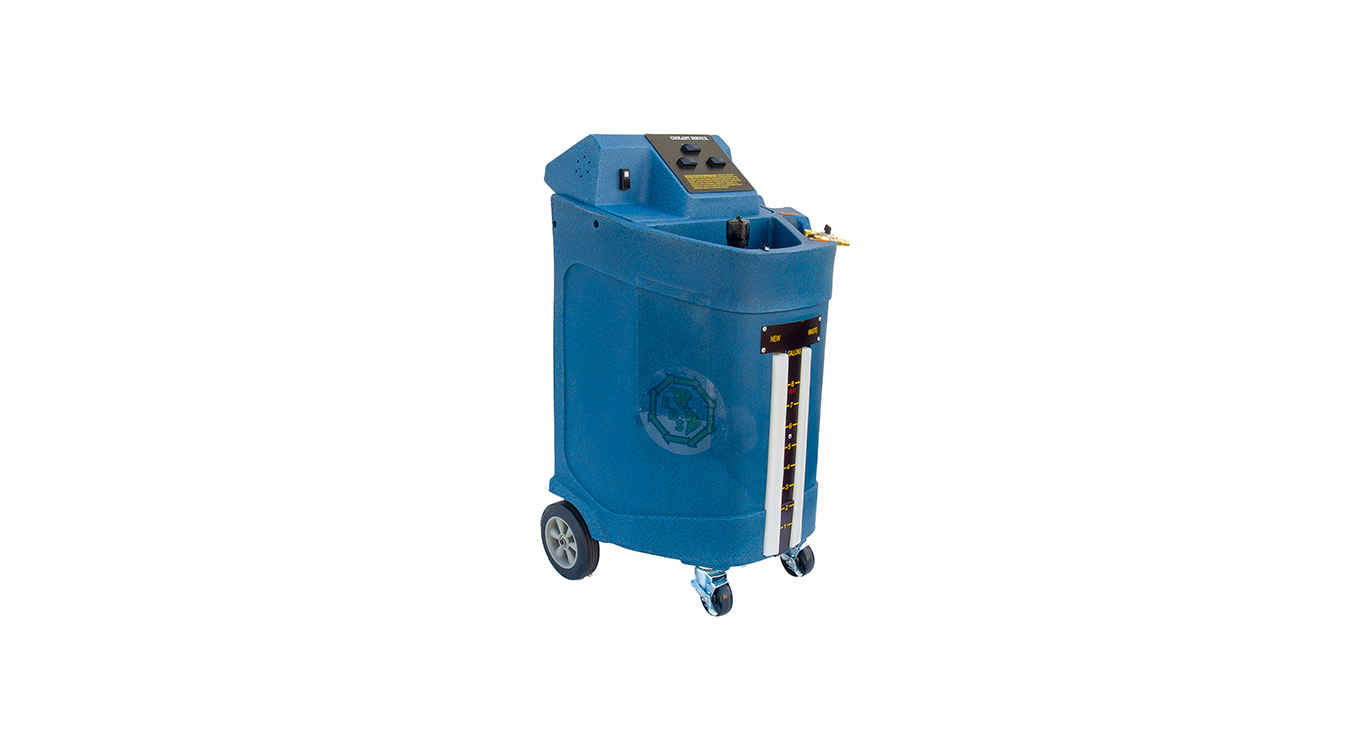

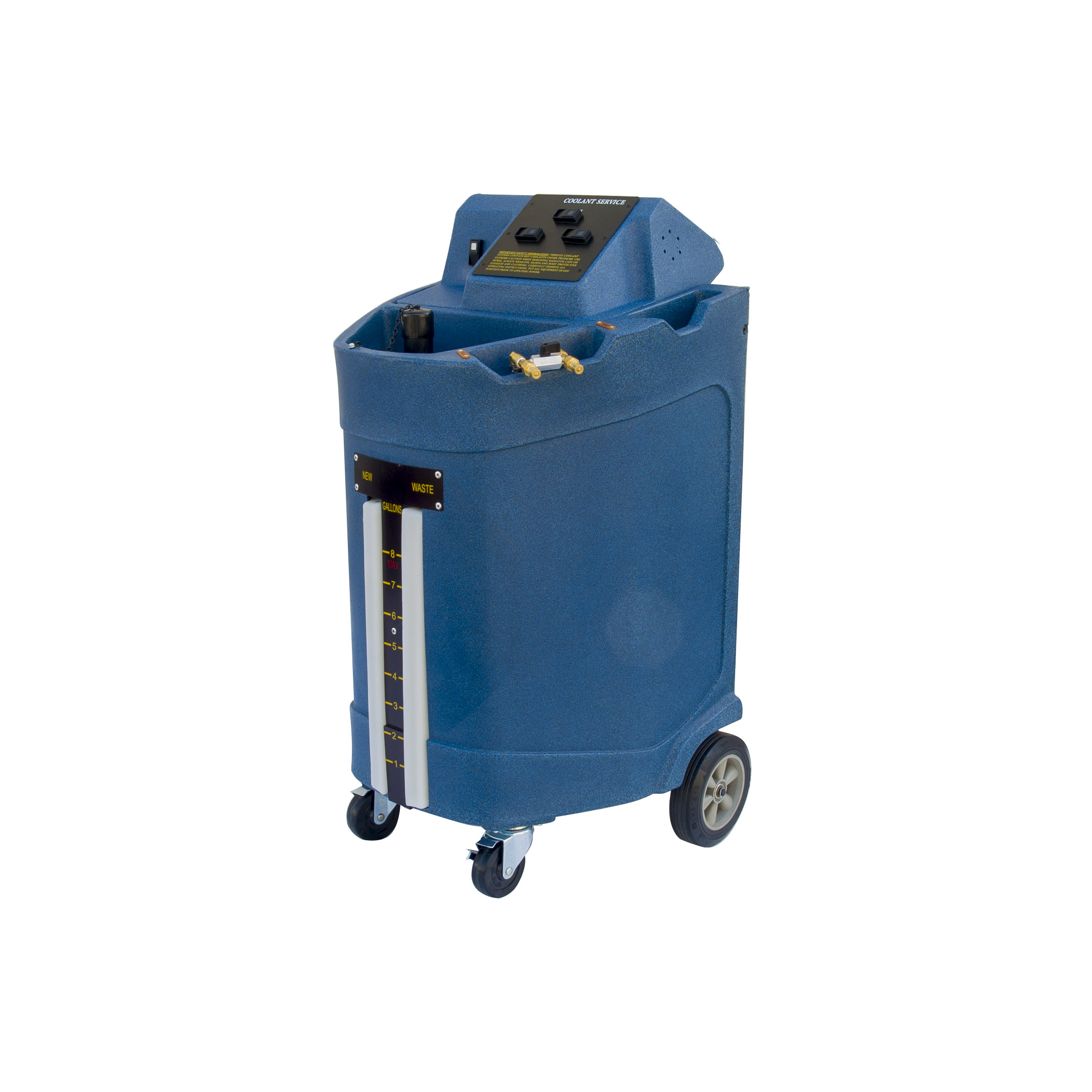

  • Equipment cabinet made from heavy-duty industrial grade polyethylene – 8 inch rear wheels with locking front casters.

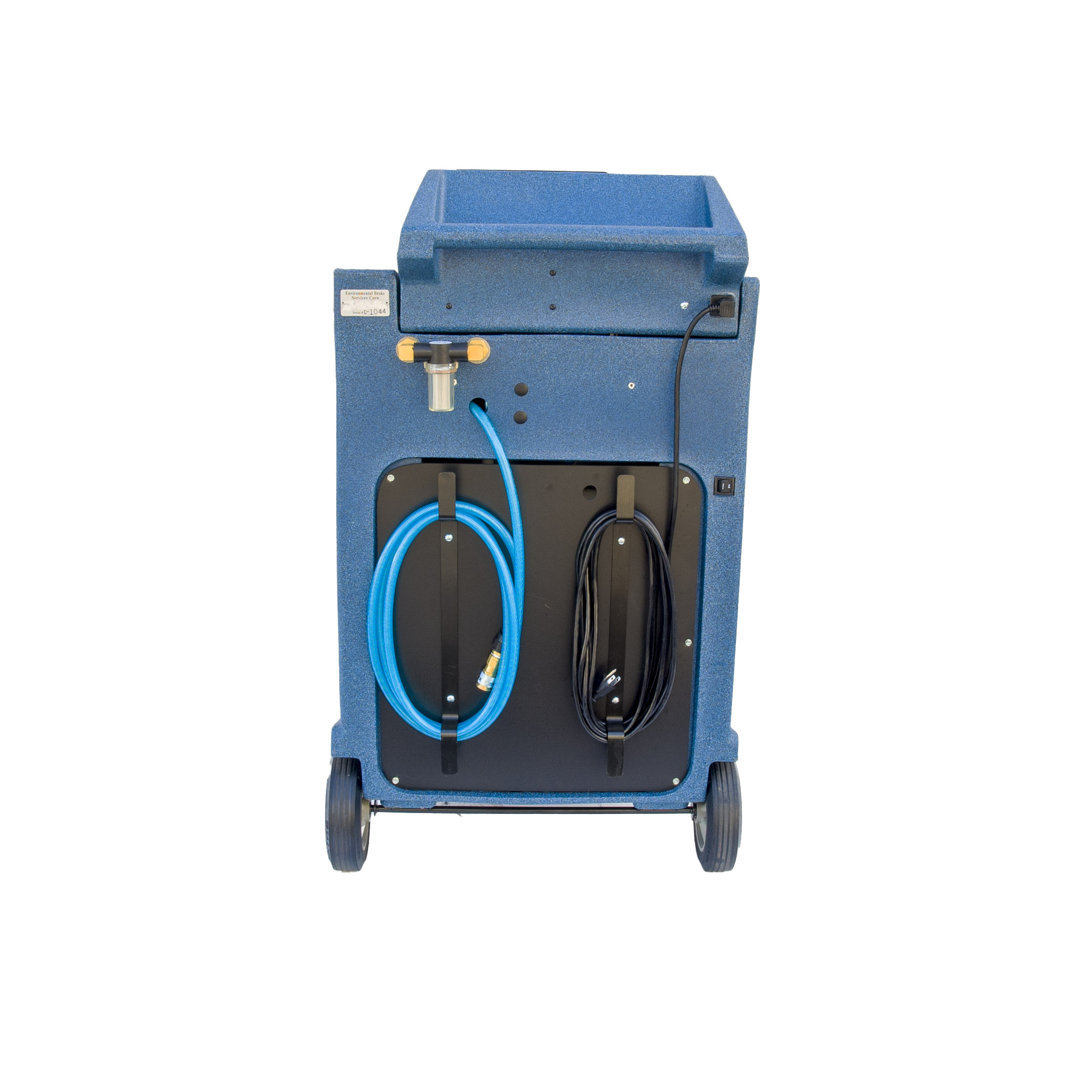

  • 110vac powered, 22 ft. power cord, converted to 12vdc.

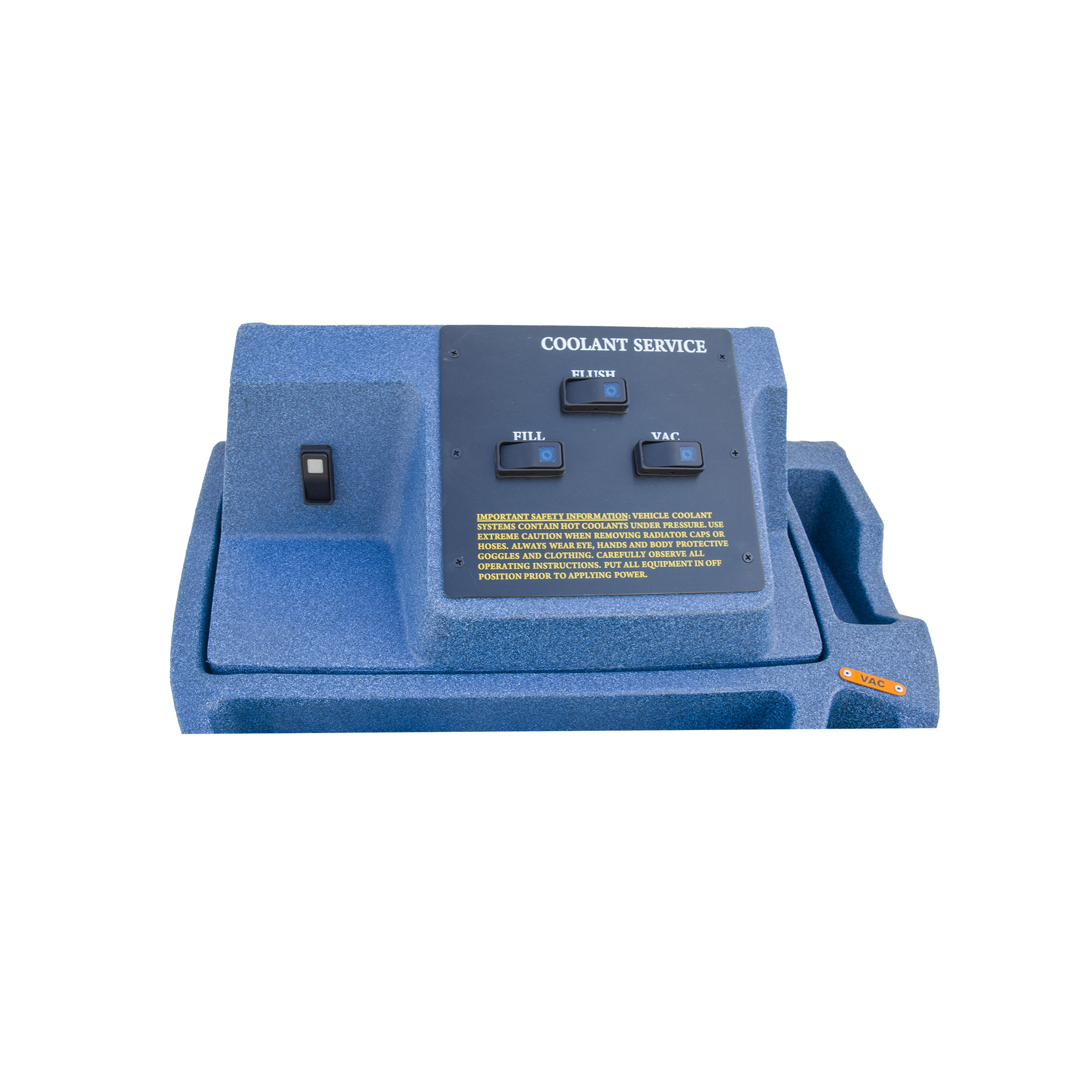

  • Easy to use electric switch control of Vacuum Pump and Fill Pump

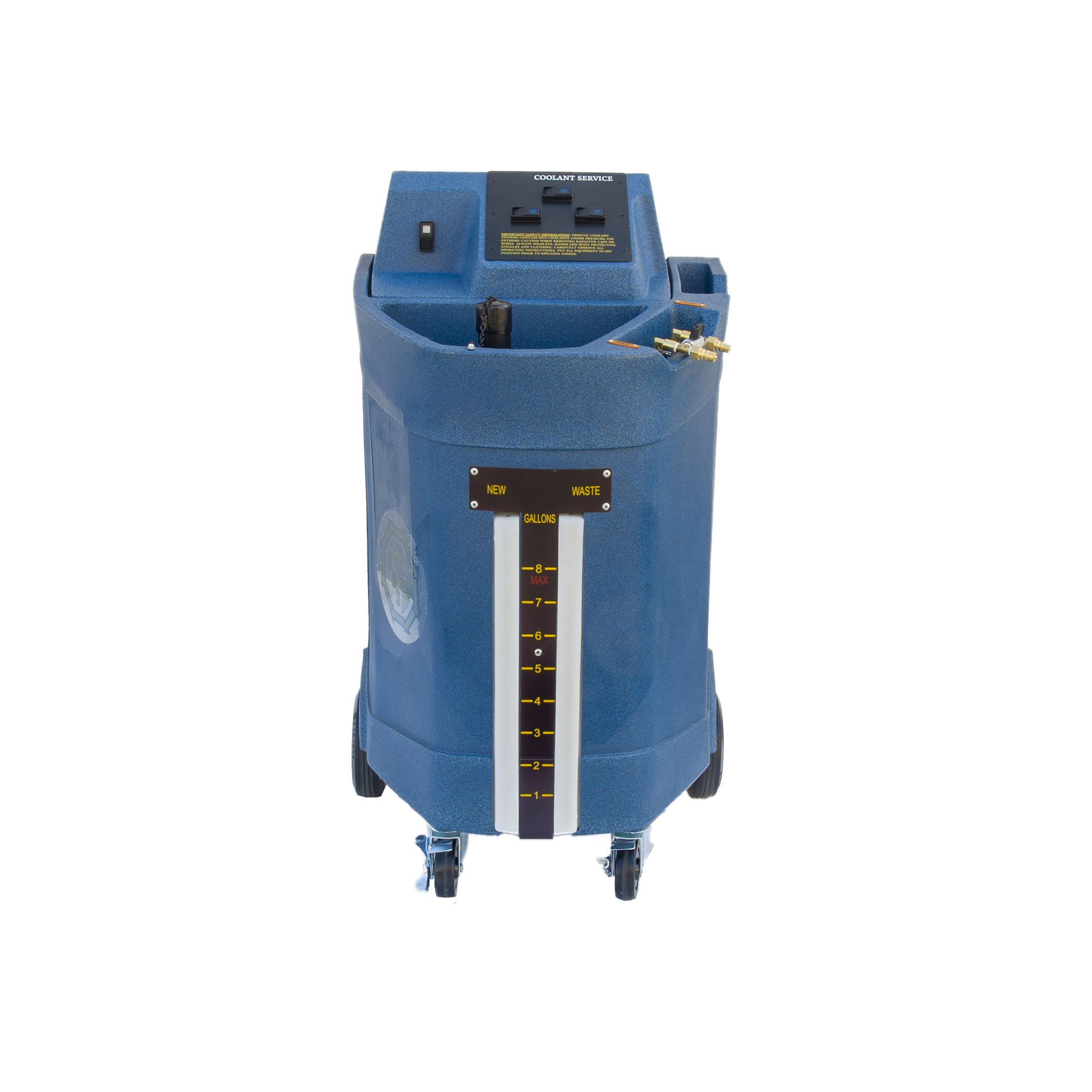

  • One - 8gallon new fluid tank - top filled and capped – front visible
  • One - 8gallon waste fluid tank – front visible -separate switched waste pump.
  • Attached priming or fluid exchange valve.

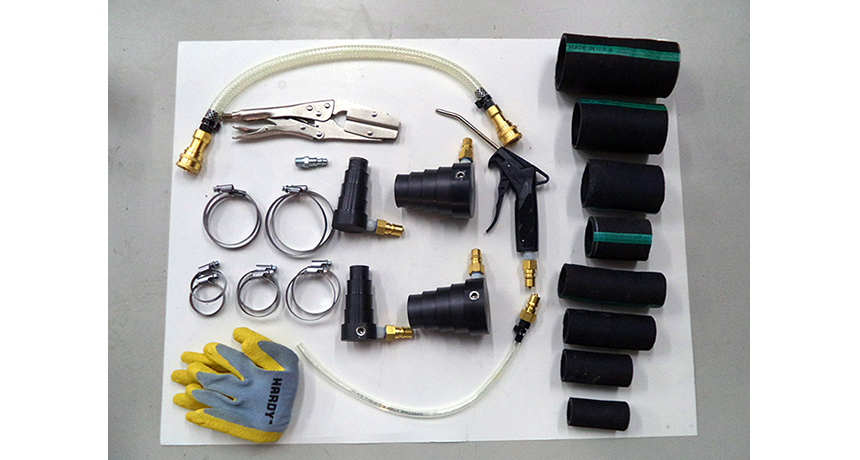

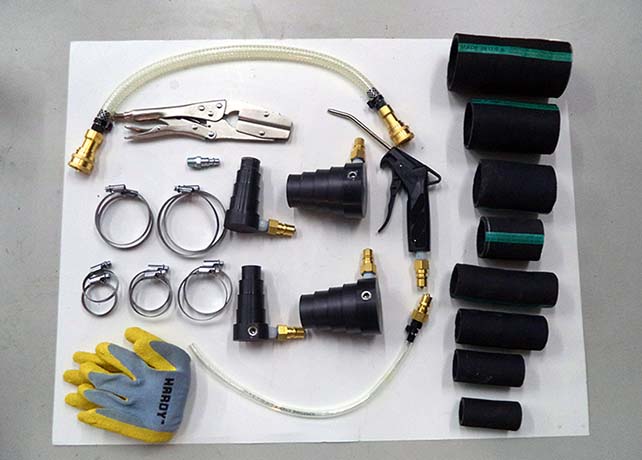

  • Radiator hose connection adapters from 1in. to 2.5in. – 8 sizes.
  • Adapter Hose is marked for proper connection direction.
  • All connectors on adapters and service hoses are double shut off
  • Service by reverse flow – pressure into engine and vacuum at the radiator with the engine off – approximately 1⁄2 GPM.
